PT Cipta Teknik Utama is a full-service IT and Safety Contractor providing supply, design and built services for our clients We commit to build our client's vision by providing excellent quaility and services that exceeds your expectations.

We are also engage with reliable partners and principals who will give valuable insights and services. Our experts and engineers who have more than 10 years experience have built a good record of integrity, expertise and customer satisfaction in South East Asia (Indonesia) territory.

Consulting

We deliver the consultation for building, mechanical and electrical.

Design

We deliver best design for your company

Integration

We can do integration for your company

Maintenance

We can do maintenance for your company

Cipta Teknik Utama — Hero

Cipta Teknik Utama is the exclusive distributor of i.safe in Indonesia and the country’s only authorized service centre.

Providing full support from official distribution to certified after-sales service across Indonesia.

Check Our Service Centre from:

Location i.Safe Website

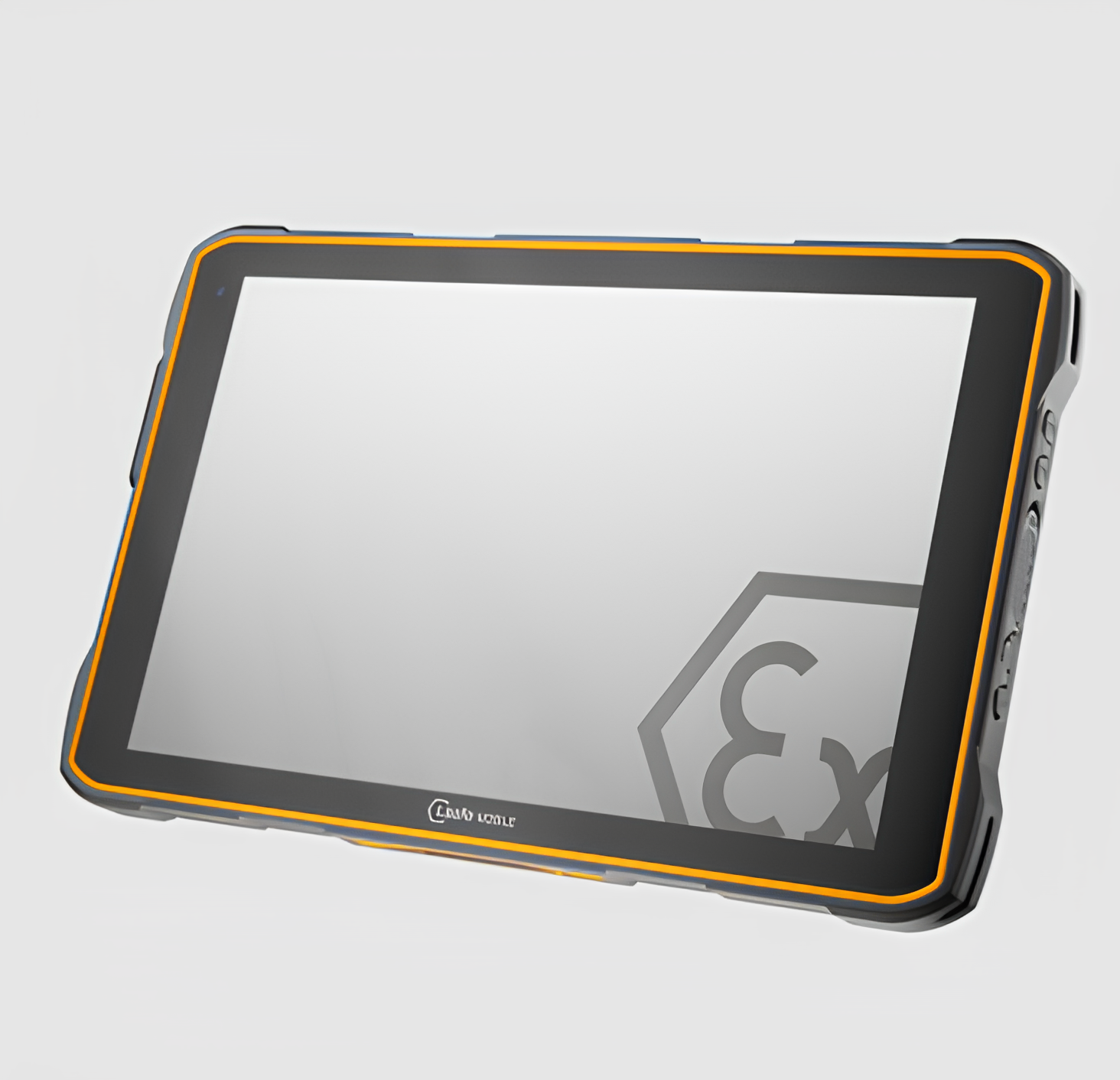

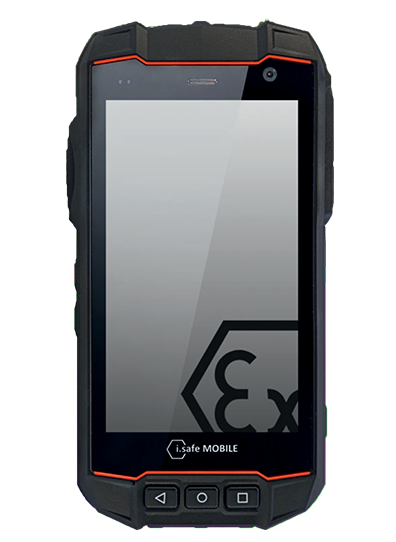

i.safe rugged device

i.Safe Device Categories

IS530.1 IS930.1 IS530.2 IS930.2 IS540.2 IS940.2
Certified
ATEX certificate Certificate ATEX (Europe) IECEx certificate Certificate IECEx (International)

Legal & Compliance Documentation

Complete legal framework ensuring secure international trade partnerships with full regulatory compliance

Verified
Zhongguancun
High-Tech Enterprise

Recognizing Vewell as a Top 1 Brand awarded by Zhongguancun High-Tech Enterprise.

Verified
Beijing Specialized, Refined,
Differentiated, and Innovative

“Little Giant Enterprise” Certificate by Beijing Municipal Bureau of Economy & Information (2022–2025).

Verified
Chinese High-Tech Industrialization
Research Association

Certificate recognizing Vewell as No.1 Market Leader in large display & multimedia products in China.

Verified
Verification of Compliance
From SGS

SGS Certificate (CE Compliance) confirming Vewell monitors passed EMC testing and meet EU standards.

INSIGHT • LED VIDEO WALL

Perbandingan COB vs SMD

COB vs SMD Comparison

Dalam aplikasi LED videotron/video wall, dua teknologi yang paling umum adalah COB (Chip-On-Board) dan SMD (Surface Mounted Device). Pemilihan bergantung pada target pixel pitch, jarak pandang, lingkungan, dan kebutuhan perawatan.

COB — Ringkasan

Chip RGB di-bond langsung ke PCB lalu dilapisi film pelindung untuk meningkatkan ketahanan, kontras, dan viewing angle. Umumnya dipilih untuk fine/ultra-fine pitch (< 1.5 mm).

  • Flip-chip COB → lebih terang, kontras lebih baik, paket lebih tipis, konsumsi daya bisa ±20% lebih rendah, stabil karena tanpa wire bonding.

SMD — Ringkasan

Paket LED 3-in-1 (RGB) dipasang ke PCB via SMT & wire bonding. Teknologi paling matang untuk berbagai ukuran, umumnya ≥ 1.2 mm baik indoor maupun outdoor.

  • Plus: biaya lebih rendah, rantai pasok luas, perbaikan per titik LED mudah, fleksibel untuk bentuk/curve.
  • Catatan: ketahanan bentur lebih rendah; kontras dan efisiensi sedikit di bawah COB pada pitch halus.
AspekCOBSMD
TeknologiChip RGB langsung di-die-bond ke PCB + film pelindungPaket LED 3-in-1 dipasang via SMT + wire bonding
Pixel Pitch< 1.5 mm; flip-chip mendukung ultra-fine (< P0.7)≥ 1.2 mm; sulit capai ultra-fine
BrightnessSangat tinggi; flip-chip tanpa shading kawat/padTinggi, sedikit di bawah COB pada pitch halus
Contrast / Black LevelLebih baik (area non-emisi lebih gelap)Lebih rendah; celah antar LED terlihat
Efisiensi DayaLebih efisien (flip-chip hemat ~20%)Sedikit lebih tinggi konsumsi daya
Ketahanan & StabilitasTinggi (tanpa wire bonding)Lebih rawan benturan; LED bisa lepas di tepi
PerawatanPerbaikan & kalibrasi lebih kompleksMudah ganti per titik; biaya rendah
Kesesuaian AplikasiPremium indoor, control room, retail mewah, meeting room high-endIndoor & outdoor umum, videotron besar, bentuk custom/curve
Biaya SistemLebih tinggiLebih ekonomis

In LED videowall/videotron applications, the two most common technologies are COB (Chip-On-Board) and SMD (Surface Mounted Device). The choice depends on the target pixel pitch, viewing distance, environment, and maintenance strategy.

COB — Summary

RGB chips are die-bonded directly to the PCB and coated with a protective film. Typically chosen for fine/ultra-fine pitch (< 1.5 mm).

  • Flip-chip COB → higher brightness, better contrast, thinner package, up to ~20% lower power, improved stability.

SMD — Summary

3-in-1 RGB LED packages mounted via SMT & wire bonding. The most mature technology, ≥ 1.2 mm for indoor & outdoor.

  • Pros: lower cost, wide supply chain, easy pixel repair, flexible for curves.
  • Notes: lower impact resistance; slightly lower contrast/efficiency at fine pitch.
AspectCOBSMD
TechnologyRGB chips die-bonded to PCB + protective film3-in-1 LED package via SMT + wire bonding
Pixel Pitch< 1.5 mm; flip-chip supports ultra-fine (< P0.7)≥ 1.2 mm; limited by diode size
BrightnessVery high; avoids wire/pad shadingHigh, slightly below COB
Contrast / Black LevelBetter, deeper blacksLower; visible gaps
Power EfficiencyHigher (flip-chip saves ~20%)Slightly less efficient
Durability & StabilityHigh (no wire bonding)More vulnerable; edge LEDs may detach
MaintenanceMore complex calibrationEasy per-pixel replacement
Application FitPremium indoor, control rooms, luxury retailGeneral indoor/outdoor, large screens
System CostHigherMore economical
Konsultasi Proyek LED Consult Your LED Project Lihat Produk Terkait See Related Products

FAQ Singkat

Quick FAQ

Apakah COB selalu lebih baik?

Tidak selalu. COB unggul di pitch halus, SMD unggul fleksibilitas & biaya.

Bagaimana menentukan pitch?

Aturan praktis: pitch (mm) ≈ jarak pandang (m). Contoh: 2 m → P2.

Is COB always better?

Not always. COB excels at fine pitch; SMD wins in flexibility & cost.

How to choose pitch?

Rule of thumb: pitch (mm) ≈ viewing distance (m). Example: 2 m → P2.

Butuh kalkulasi pitch & jarak pandang?

Need pitch & viewing distance calculation?

Tim kami bantu hitung pitch, luminance, dan konsumsi daya sesuai skenario ruangan.

Our team can help calculate pitch, luminance, and power for your room scenario.

Contact Us Contact Us

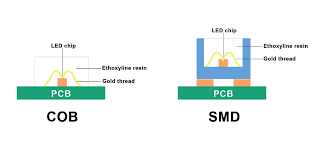

Perbedaan COB vs SMD

Ilustrasi perbedaan struktur COB vs SMD

Illustration of structural difference between COB and SMD

Our Partners

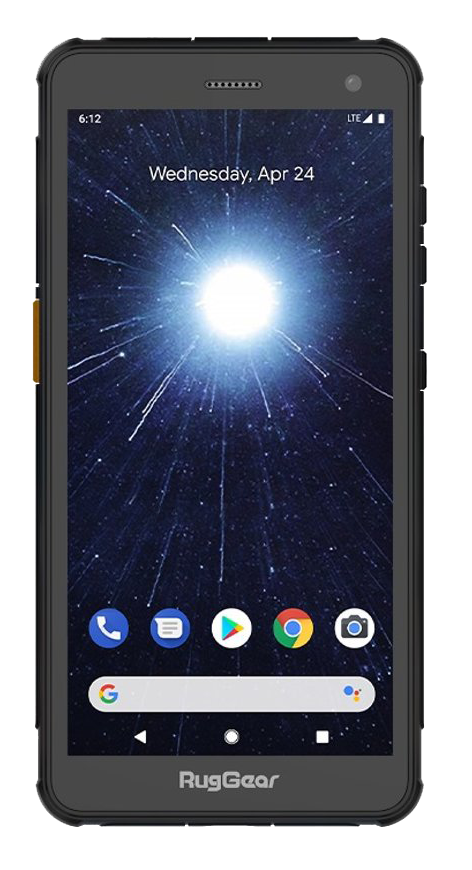

Agille Mobile Bartec Pixavi Vewell Bliz FireBlock i.safe Mobile RugGear BrightLED

Our Clients

Basarnas Pertamina GBI MOI Bank Mandiri Syariah Kementerian Sosial Telkom Jasamarga

Our Products

Display Solution

Videotron

Collaboration System

ATEX Smart Phone

Safety Solution

Software Solution

References

FireBlock

Kementerian Pendidikan dan Kebudayaan

Pelindo II GUPER Jakarta

Pertamina Aviasi - Juanda

Pertamina Dumai

Pertamina Medan

Pertamina Palembang

Pertamina Surabaya
View All References

Contact

Loading
Your message has been sent. Thank you!

  • LOGO

    Panel Parameters

    Aspec Ratio
    		 16:9
    Backlight
    		 DLED
    Resolution
    		 1920 x 1080
    Display Color
    		 16.7M (8bit)
    Brightness
    		 500 cd/m2
    Visual Angle
    		 178 °C
    Respond Time
    		 ≤ 8ms
    Service Life Time
    		 > 60.000 hour

    Features

    Video System
    		 PAL / NTSC / SECAM
    Language
    		 English, Chinese or other (Optional)
    Operation Way
    		 Apps and Remote Control

    Input and Output Interfaces Parameters

    D-15RGB (VGA)
    		 1
    DVI
    		 1
    HDMI
    		 1
    Infrared Interfaces (IR)
    		 1
    USB
    		 1
    COM In
    		 1

    For Details

  • LOGO

    Display

    Display Ratio
    		 16:9
    Backlight
    		 LED
    Response Time
    		 4ms
    Resolution
    		 3840(H)x 2160(V)
    View Angle
    		 Horizontal 178°, Vertical 178°

    Touch System

    Glass Material
    		 Anti-glare Toughened Glass
    Sensing Type
    		 Infrared
    Touch Point
    		 20 Points
    Touch Mode
    		 Finger-Opaque Object (≥ 2mm)
    Touch Accuracy
    		 ± 1 mm

    Camera

    Location
    		 Top x 1
    Pixel
    		 8 - Megapixels
    Automatic Control
    		 Automatic White Balance, Adaptive Ambient Brightness
    Lens Distortion
    		 ≤ 1%
    Smart Switch
    		 Support
    Face Recognition
    		 Support

    For Details

  • LOGO

    Technical Specification - VS-430

    Screen Size
    		 43"
    Resolution
    		 FHD 1920 x 1080
    Display Size (mm)
    		 970(H)x559(W)
    Brightness (cd/m²)
    		 320
    Aspect Ratio
    		 16:9
    Contrast Ratio (typ.)
    		 5000:1
    Input Power (Volt AC)
    		 110-220 V (50Hz-60Hz)
    Work Temperature
    		 0-50 ˚C

    Technical Specification - VS-430

    Screen Size
    		 55"
    Resolution
    		 FHD 1920 x 1080
    Display Size (mm)
    		 1239(H)x710(W)
    Brightness (cd/m²)
    		 350
    Aspect Ratio
    		 16:9
    Contrast Ratio (typ.)
    		 5000:1
    Input Power (Volt AC)
    		 110-220 V (50Hz-60Hz)
    Work Temperature
    		 0-50 ˚C

    For Details

  • Indoor Specification - Model Q1

    Scanning Mode
    		 1/40
    Pixel Pitch (mm)
    		 1
    Module Resolution
    		 320 x 160
    Modul Size (mm)
    		 320 x 160
    Pixel Density
    		 10000000
    Module Weight (kg)
    		 0.5
    Brightness (cd/m²)
    		 ≥450
    Power Consumtion (W/m²)
    		 ≥791

    Indoor Specification - Model Q3.0

    Scanning Mode
    		 1/26
    Pixel Pitch (mm)
    		 3.076
    Module Resolution
    		 104 x 52
    Modul Size (mm)
    		 320 x 160
    Pixel Density
    		 105625
    Module Weight (kg)
    		 0.32
    Brightness (cd/m²)
    		 ≥450
    Power Consumtion (W/m²)
    		 ≥413

    For Details

  • Outdoor Specification - Model S5

    Scanning Mode
    		 1/8
    Pixel Pitch (mm)
    		 5
    Module Resolution
    		 64 x 32
    Modul Size (mm)
    		 320 x 160
    Pixel Density
    		 40000
    Module Weight (kg)
    		 0.49
    Brightness (cd/m²)
    		 ≥6000
    Power Consumtion (W/m²)
    		 ≤836

    Outdoor Specification - Model S10

    Scanning Mode
    		 1/2
    Pixel Pitch (mm)
    		 10
    Module Resolution
    		 32 x 16
    Modul Size (mm)
    		 320 x 160
    Pixel Density
    		 10000
    Module Weight (kg)
    		 0.48
    Brightness (cd/m²)
    		 ≥6000
    Power Consumtion (W/m²)
    		 ≤413

    For Details

  • LOGO

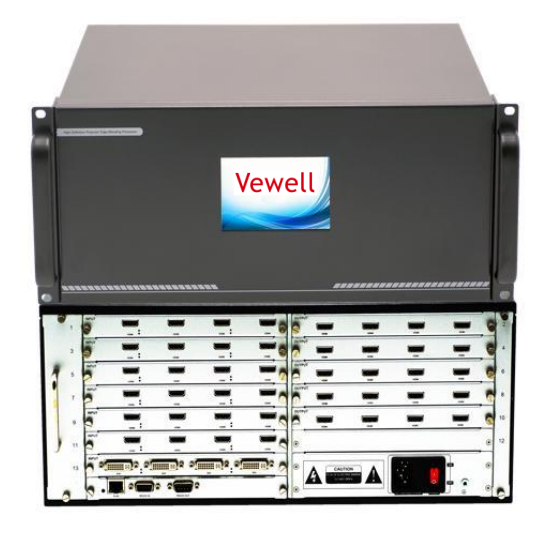

    Technical Parameters

    Description
    		 Up to 4 video windows per display channel (optional)
    Input Resolution
    		 1920x 1200/60Hz, 1080p, compatible of all standard resolutions and can be costumized
    Output Resolution
    		 1920 x 1200/60Hz (compatible with standard resolution)
    Power Supply
    		 Dual power supplies 100-240VAC, 50/60Hz, more trustable hot swappable power supply working mode, internationally self-adaptive power
    Working Temperature
    		 -20°C-60°C
    Working Humidity
    		 5-95%
    Baud Rate
    		 115200
    Serial Port
    		 RS-232

    For Details

  • LOGO

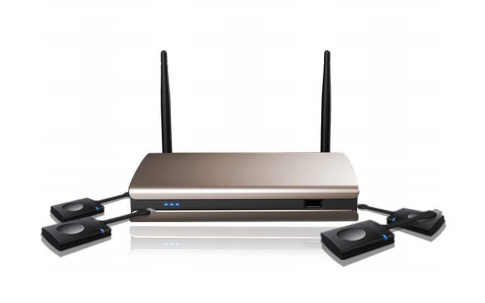

    Technical Specification

    Operating System
    		 Windows 7/8.1/10 32 & 64 bit
    WMAC OS X 10.9.10/10.11
    Compatible with airplay function iOS9, OS X (10.10/10.11)
    Android 4.0 or higher (use app Allcast)
    Video Input Resolution
    		Up to 3840x2160
    Frame rate
    		 Up to 30 fps
    HDMI and VGA
    Numbers of sources Simultaneous on screen
    		 2/4
    Numbers of Simultaneous conections
    		 Maximum up to 16
    Wireless Transmission Speed
    		 Up to 867Mbps
    Wireless Transmission Protocol
    		 IEEE 802.11ac/801.11n
    Wireless Encryption Protocol
    		 WPA2-SPK

    For Details

  • LOGO

    Technical Specification

    System
    		 Android Pie 9
    Battery
    		4200 mAh Battery
    Memory
    		 3GB RAM 32GB (support microSDHC up to 128GB)
    Cameras
    		 Camera 13 MP(rear) and 8 MP (front)

    For Details

  • LOGO

    Technical Specification

    System
    		 Android Pie 9
    Battery
    		3600 mAh battery, replaceable, 3,8V; 13,68Wh
    Memory
    		 4 GB RAM , 64 GB internal memory
    Cameras
    		 Camera 13 MP(rear) and 5 MP (front)
    Bluetooth
    		 Bluetooth® 5.0
    WI-FI
    		 2,4GHz + 5GHz: IEEE 802.11a/ b/g/n/ac/e/k/r/h with max. 8 connections hotspot
    NFC
    		 Support

    For Details

  • LOGO

    Technical Specification

    System
    		 Android 9.0
    Size
    		280*180*20.5mm
    Battery
    		310000mAh Li-ion battery
    Memory
    		 RAM 3GB, ROM 64GB
    Cameras
    		 Camera 13 MP(rear) and 5 MP (front)
    Bluetooth
    		 4.2 class 1.5
    WI-FI
    		 802.11(ac/b/g/n) dual band
    NFC
    		 Support

    For Details

  • LOGO

    Technical Specification

    System
    		 Android 9.0
    Size
    		164 x 84 x 14.5 mm (6.4 x 3.3 x 0.57 inch)
    Battery
    		3.200 mAh (Replaceable) Must only be changed and charged outside of potentially explosive atmosphere
    Memory
    		 4 GB LPDDR4X
    Cameras
    		 Camera 12 MP(rear) and 8 MP (front)
    Bluetooth
    		 Bluetooth 5.0 and BLE
    WI-FI
    		 WiFi 5 (2.4/5 GHz 802.11a/b/g/n/ac)
    NFC
    		 Support

    For Details

  • LOGO

    Technical Specification - Lightning Strike Counter BZ-2

    Power Supply
    		 9 V Battery Changeable
    Display Digit
    		0 ~ 999
    Min. Count Impuls
    		> 3kA (8/20 µs)
    Date & Time Display
    		 Available Once Striken
    Installation width
    		 2 Standard Modular
    Installation
    		 35mm Standard Rail (EN50022 / DIN 46277 - 3)
    Enclosure
    		 Thermoplastic UL94-V-0

    For Details

  • LOGO

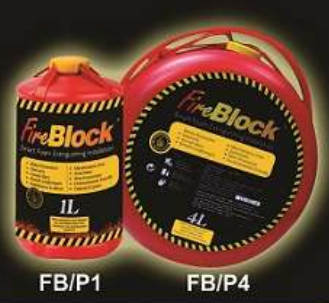

    Technical Specification

    Isi
    		 Superfine Powder & Aerosol
    Luas Pemadaman
    		1 meter kubik
    Masa berlaku
    		5 Tahun
    Temperatur Penyimpanan
    		 40 ˚C s/d 80 ˚C
    Berat Kotor
    		 500 gram
    Berat Bersih
    		 150 gram

    For Details

  • LOGO

    Minimum Requirements

    System
    		 Android 6.0 or iOS 10.3
    Bluetooth
    		BLE 4.1
    Battery
    		Battery life 5 days
    Includes
    		 Charging docs and cable

    For Details

  • LOGO

    Minimum Requirements

    System
    		 Android 6.0 or iOS 10.3
    Bluetooth
    		BLE 4.1
    Battery
    		Battery life 5 days
    Includes
    		 Charging docs and cable

    For Details

  • LOGO

    C600

    Aspec Ratio
    		 16:9
    Network Support
    		 4G
    Battery Capacity
    		 5000mAh
    Screen size
    		 1.44 Inch

    C600

    Type
    		 Android
    Network Support
    		 4G
    Battery Capacity
    		 5000mAh
    Screen size
    		 1.44 Inch

  • Conquest S29 LOGO

    Technical Specification

    System
    		 Android 11, 5G compatible
    Memory
    		 8 GB RAM, 128 GB internal storage
    Battery
    		 7600 mAh, large capacity
    Cameras
    		 13 MP (rear) with night vision, front camera not specified
    Additional Features
    		 Infrared thermal imaging, digital-analog DMR walkie-talkie, RFID, 1/2D barcode scanner, IP68 waterproof, NFC, flashlight, and temperature measurement.

    For Details
